AV Access 4K HDMI Fiber KVM Extender Over IP, up to 550m/1800ft, Zero Latency, 3xUSB 2.0 Ports, Remote Keyboard Mouse USB Control Over Fiber Optic, Remote PC Control in Server Room (4KIP500F-KVM)

Overview

• Operation Mode : ON-OFF-ON
• Current Rating : 1 Amps
• Operating Voltage : 12 Volts
• Contact Type : Normally Open
• Connector Type : Plug In
• Brand : v AV Access
• Terminal : Through Hole
• Item dimensions L x W x H : 8.66 x 5.12 x 2.36 inches
• Circuit Type : 2-way
• Actuator Type : Push Button
• Switch Type Push Button : Material Metal
• : Switch Type Push Button
• : Material Metal
• Mounting Type Panel Mount : Specification Met CE
• : Mounting Type Panel Mount
• : Specification Met CE

About this item

• Note: The package comes with multi-mode optical modules supporting up to 500m. You can buy and replace them with single-mode optical modules to achieve a longer transmission distance (at least 10km, depending on the module’s capability)
• Up to 550M Transmission Range: Enjoy zero-latency, 4K ultra HD HDMI signal transmission over a distance of up to 550m (1800ft) using multi-mode optical fiber cable. Perfect for expansive spaces like large buildings, ensuring clear, high-quality visuals.
• Unmatched Stability with Fiber Optic: Our fiber optic connection eliminates electromagnetic interference (EMI) and provides optical isolation, guaranteeing uninterrupted and superior video transmission. Ideal for data control centers, university campuses, hospitals, sports arenas, and more.

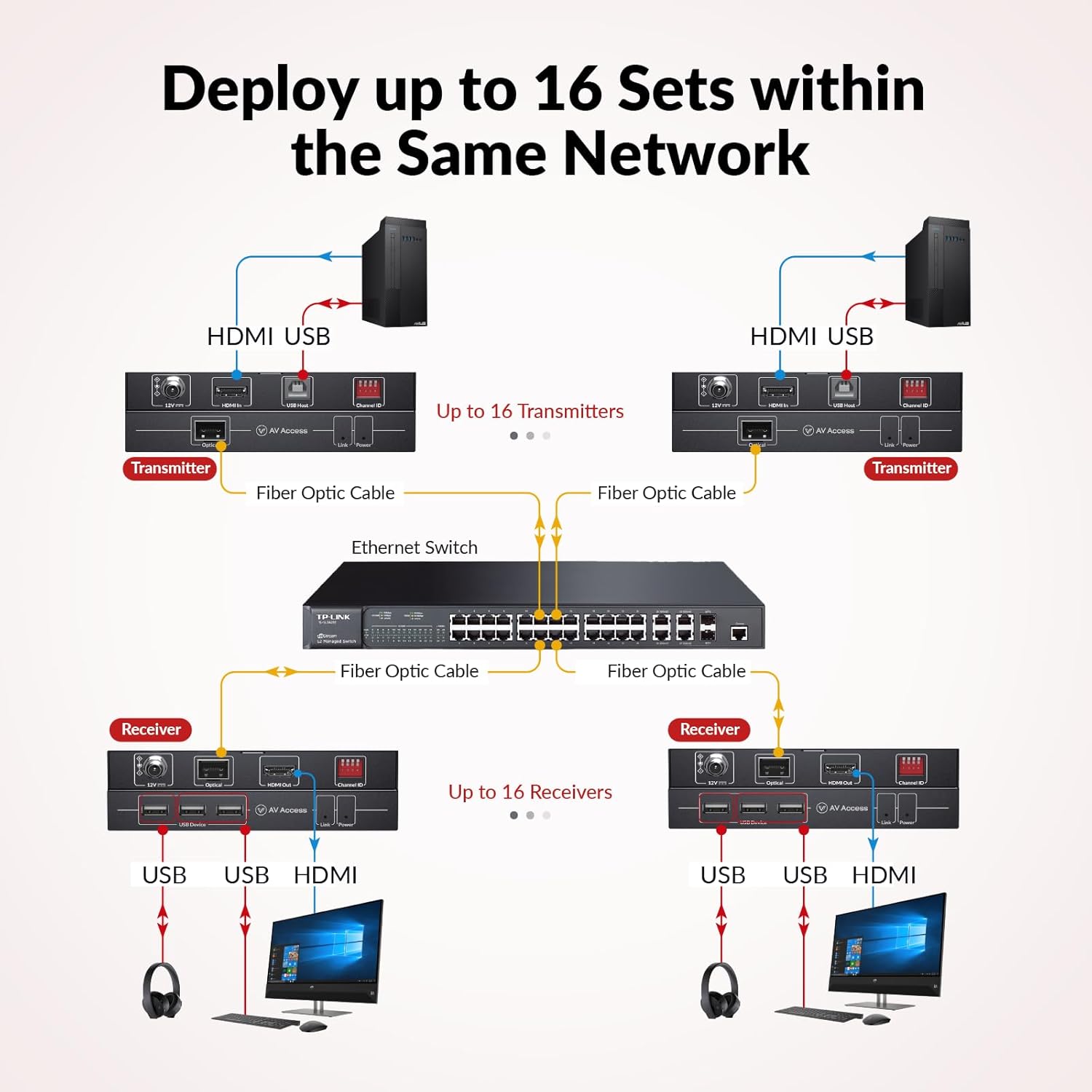

• Plug & Play KVM Extender over IP: Easily connect up to 16 transmitter and receiver pairs through a standard Gigabit Ethernet switch without the need for VLAN configuration. Simple pairing with built-in DIP switches ensures quick setup.

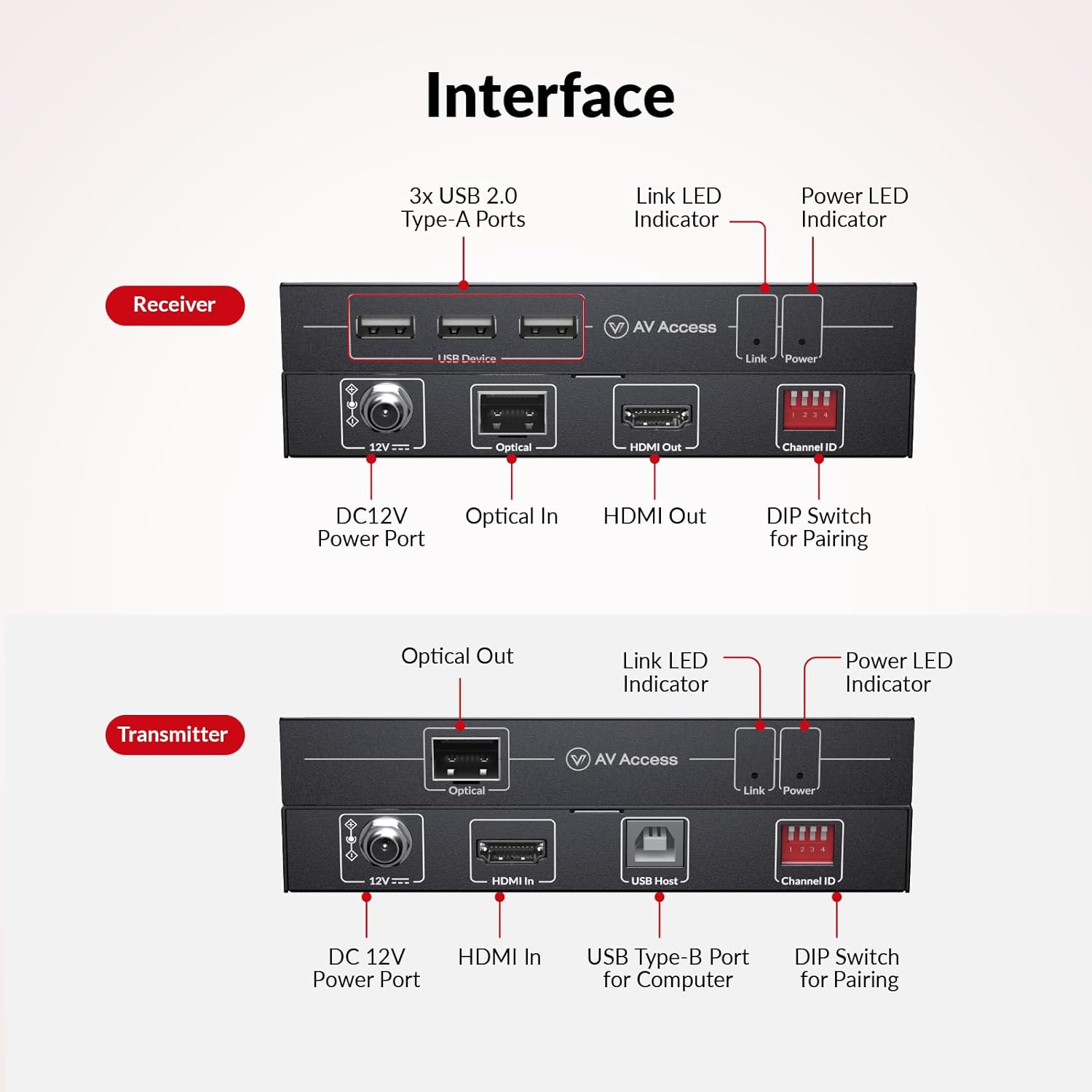

• Effortless Remote PC Control: Featuring 3x USB 2.0 ports on the receiver, this device allows you to control your remote PC with ease using a keyboard, mouse, touch-screen panel, or other peripherals at high speeds of up to 480Mbps.
• Important Notes: This product is a KVM over IP extender kit. It doesn’t support matrix switching via a Gigabit switch. Please refer to 4KIPJ200 if you need an IP KVM matrix solution. It is required to use an Ethernet switch with fiber ports to deploy multiple sets. And 2x 850nm multi-mode SFP module are included in the package.
