LINOVISION Industrial 12 Ports L2+ Cloud Managed PoE Switch with DC8~57V Redundant Power Input, Full Gigabit Solar PoE Switch, 12V PoE Switch with Relay Alarm, IEEE802.3af/at, Total PoE Budget 240W

Overview

• Brand : LINOVISION
• Number of Ports : 12
• Included Components : PoE Switch
• Color : black
• Compatible Devices : Camera

About this item

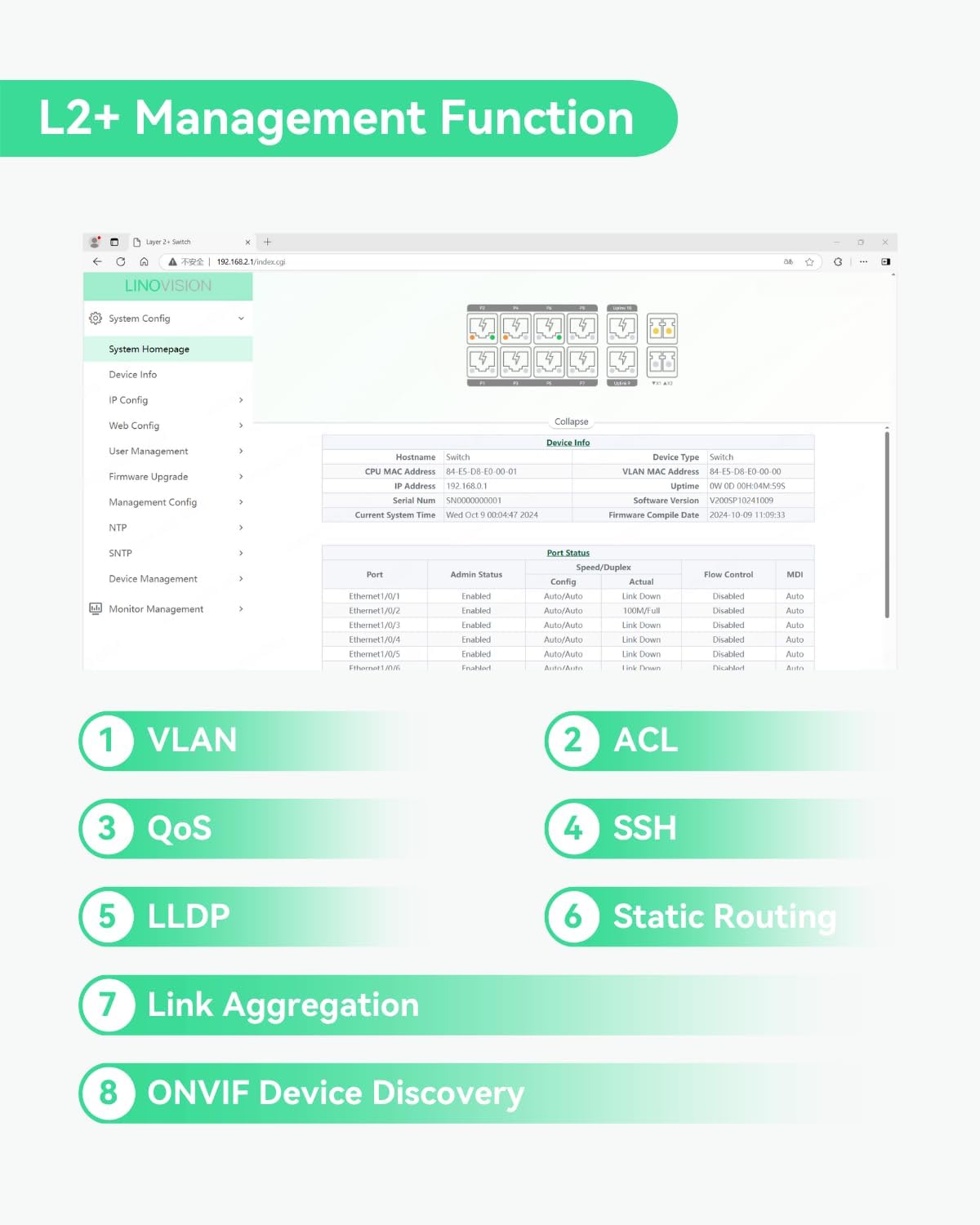

• L2+ REMOTE CLOUD MANAGED PoE SWITCH-Supports L2+ management functions like VLAN, QoS, ACL, Static Routing and Link Aggregation; Automatic ONVIF cameras discovery; Remote monitor and control PoE ports from central Cloud, such as turn On/Off PoE, speed/ priority/ PoE budget settings.

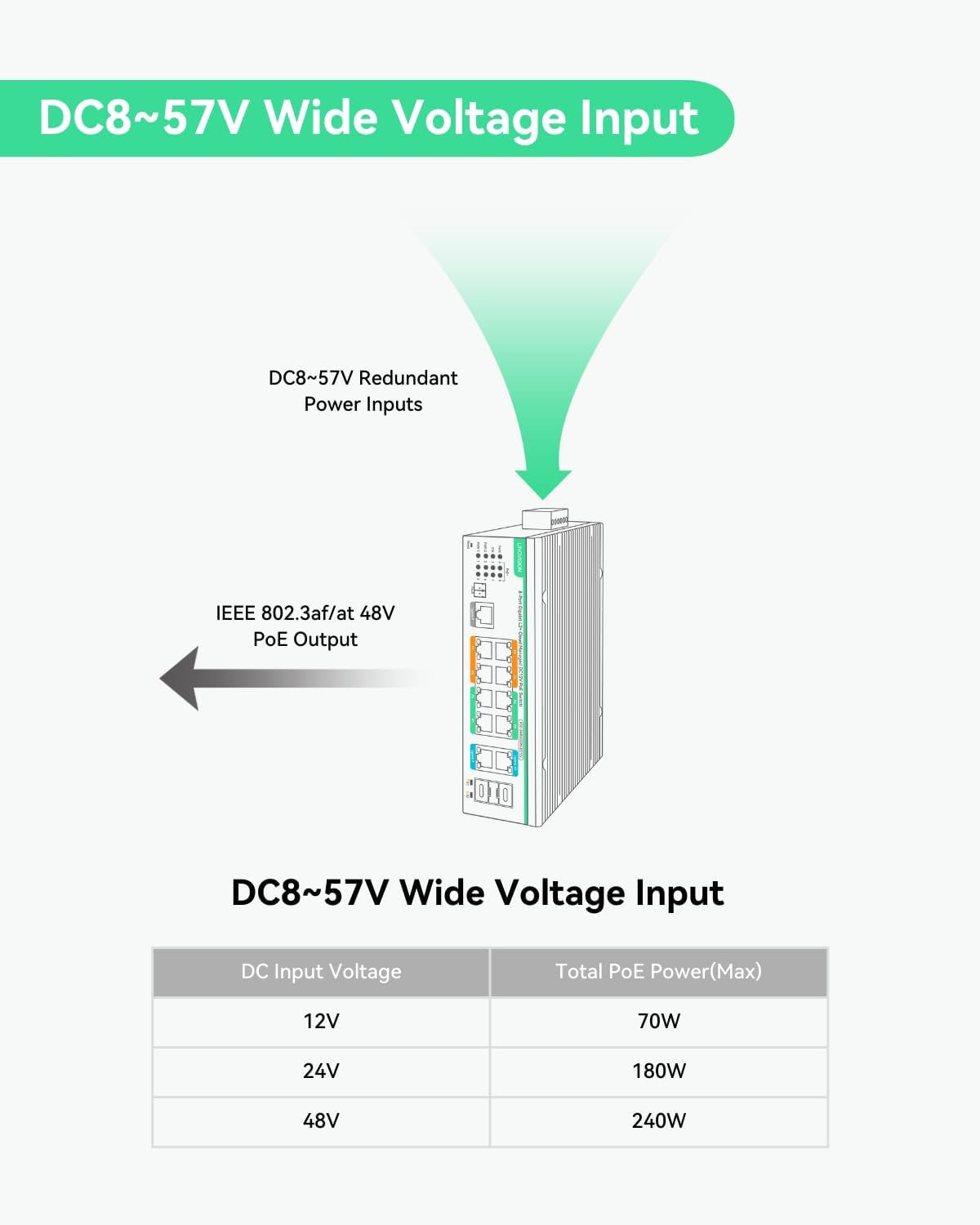

• DC8~DC57V POE VOLTAGE BOOSTER- Support DC8V-57V input and standard IEEE802.3af/at PoE output with built-in voltage booster.

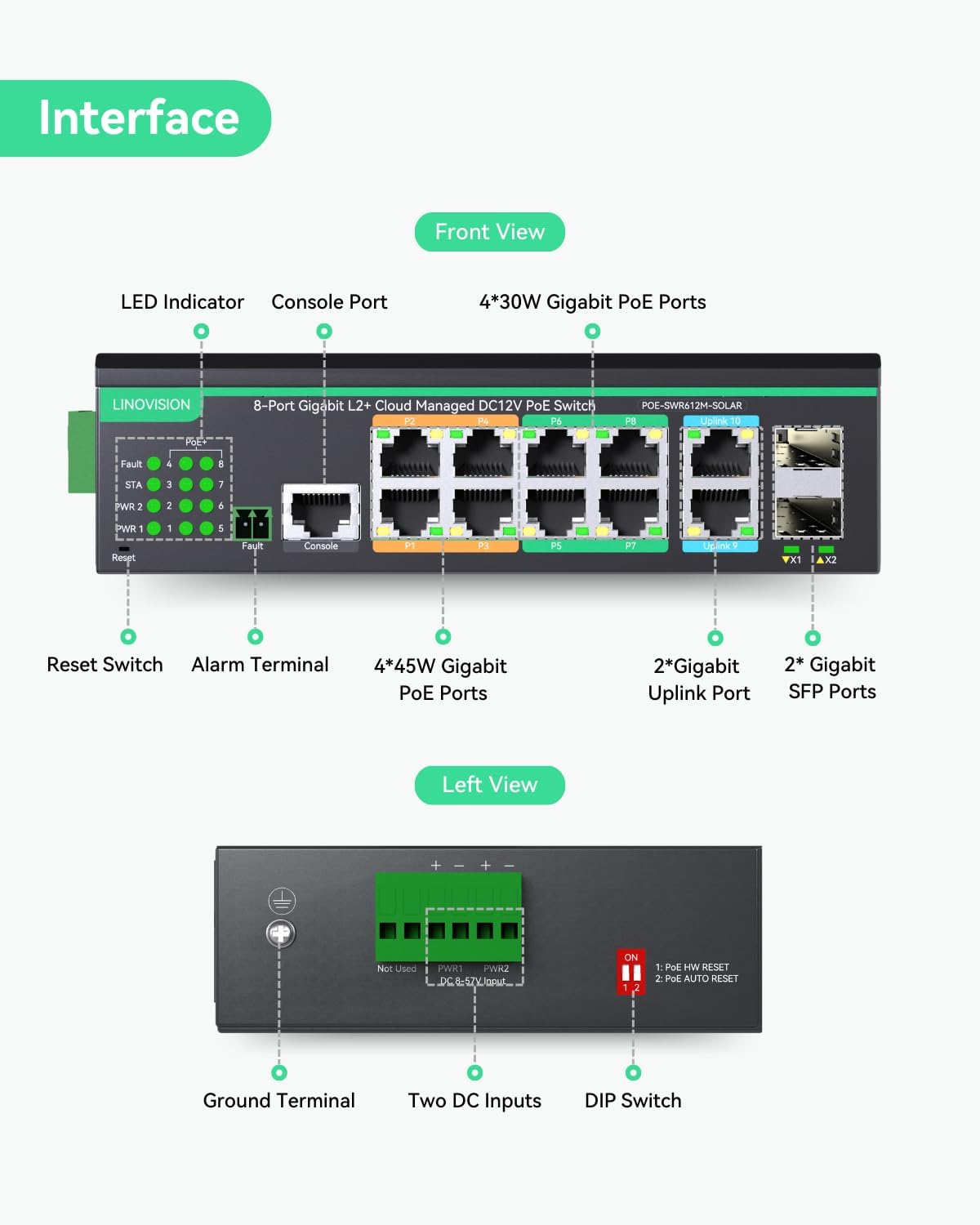

• 12 FULL GIGABIT PORTS- Provides 4x 45W and 4x 30W PoE Ports, 2x Gigabit Uplink Port and 2x Gigabit SFP ports；All ports 10/100/1000Mbps self-adaptive full duplex and Backpressure half-duplex flow control. Total PoE budget 240W@48V, or 180W@24V, or 70W@12V.
• INDUSTRIAL DESIGN- IP40 Metal shell & fanless design. Support DIN-rail or wall mounted installation. Wide working temperature -40℉ to +167℉（-40℃ to 75℃), 4KV surge immunity and 6KV ESD protection.
• RELAY ALARM- It can trigger alarm event on power failure, ensuring timely notifications to prevent unexpected downtime and enhance system reliability.
• NON-STOP POE SUPPLY- Support 2 channel DC12V-48V redundant power inputs and DIP Switch for PoE System Reset, ensure high reliability networking system.
• APPLICATION- Offer standard PoE supply in solar power system (DC12V/DC18V/DC36V input); RV/Vehicle/Truck/Bus system (DC12V input) where need PoE ports; Suitable for UPS system (DC24V input) which need standard PoE output
