Ethernet Surge Protector Gigabit, Ethernet Lightning Arrestor PoE++ 802.3af/at/bt-RJ45 Lightning Suppressor-SPD with PTC/Gas Discharge Tube/Mounting Flange-1000Mbps,1Pack

Overview

• Brand : Awishwell
• Total Power Outlets : 2
• Voltage : 48 Volts
• Special Feature : Lightweight
• Compatible Devices : Camera, Fax Machine

About this item

• 【Surge Protection】：Ethernet surge protector is designed to protect equipment against transients from lightning, ESD, and ground surges. Awishwell surge protector supports speeds up to 1 Gigabit -1000 Mbps, and provides PoE++ 802.3af/at/bt compatibility with 3KV surge protection, without affecting network performance. Peak surge current protection up to standard 5KA 8/20μs
• 【Performance Support】: Our Ethernet Lightning Arrestor provides 8-wire line protection; response time ≤ 1ns; insertion loss (Ae) ≤ 0.5dB; operating voltage (Un): 48V DC, maximum continuous operating voltage (Uc): 75V DC. Supports both Mode A and Mode B and compatible with PoE and non-PoE Ethernet connections
• 【Structural Performance:】: The aluminum housing offers excellent corrosion resistance, heat dissipation, and mechanical strength. Equipped with internal PTC functionality, providing automatic recovery and long-lasting operation. The Gas Discharge Tube (GDT) effectively protects your equipment from surge damage

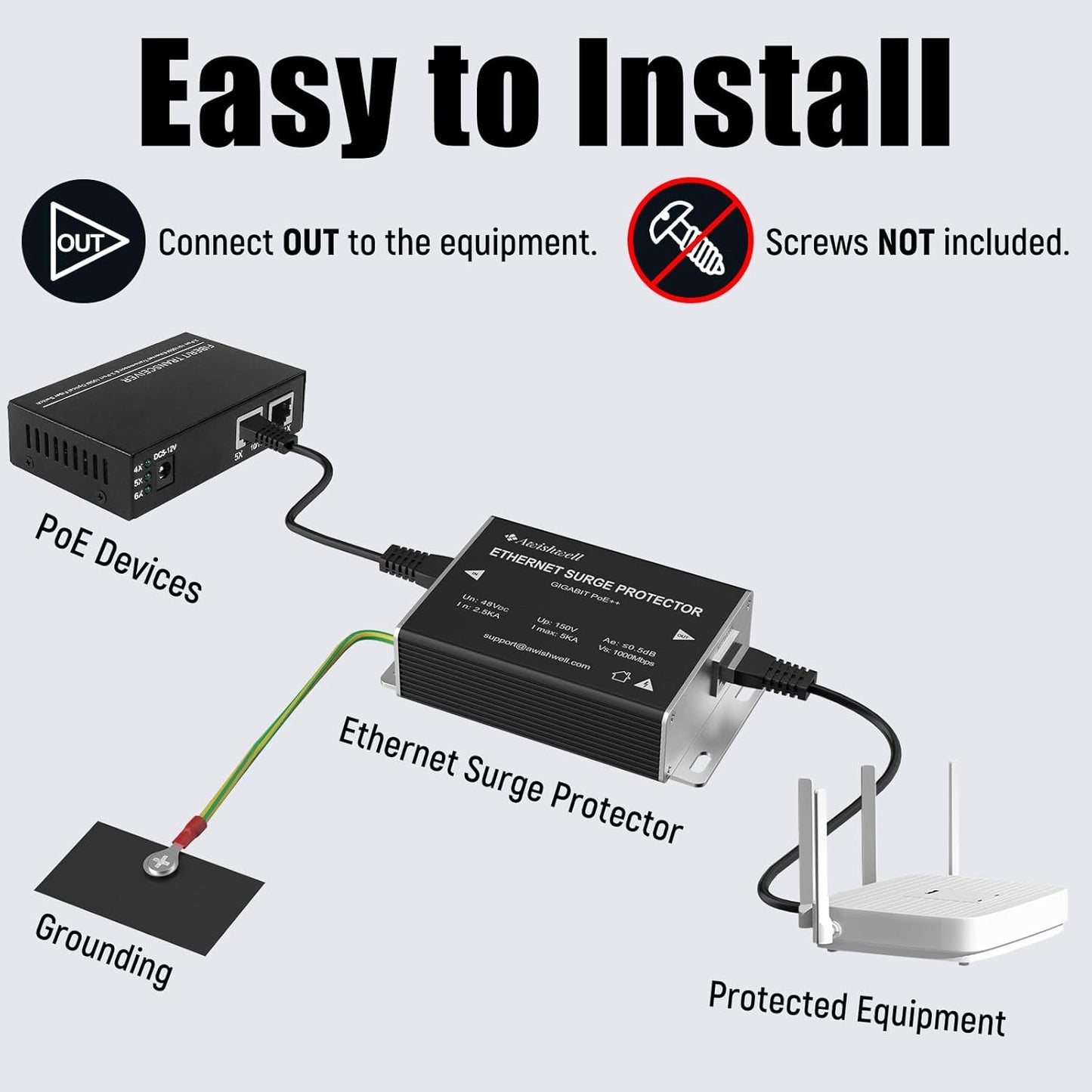

• 【Easy Installation】: The network surge protector features a 15AWG, 11.81-inch grounding wire. Directional IN (for the incoming line)/OUT (for the protected device) markings, and dual-side flanges for easy wall-mount installation (screws not included)
• 【Device Protection】: The RJ45 surge protector is suitable for routers, computers, cameras, switches, servers, and other network equipment; Compatible with CAT5, CAT5e, and CAT6 cables. It effectively suppresses lightning strikes, voltage spikes, and PoE overvoltage transients, minimizing potential damage to your network devices
